Magnetite banded iron deposits

Banded iron formations (BIF) are fine grained metamorphosed sedimentary rocks composed predominantly of magnetite and silica (as quartz). Banded Iron formations are locally known as taconite within North America.

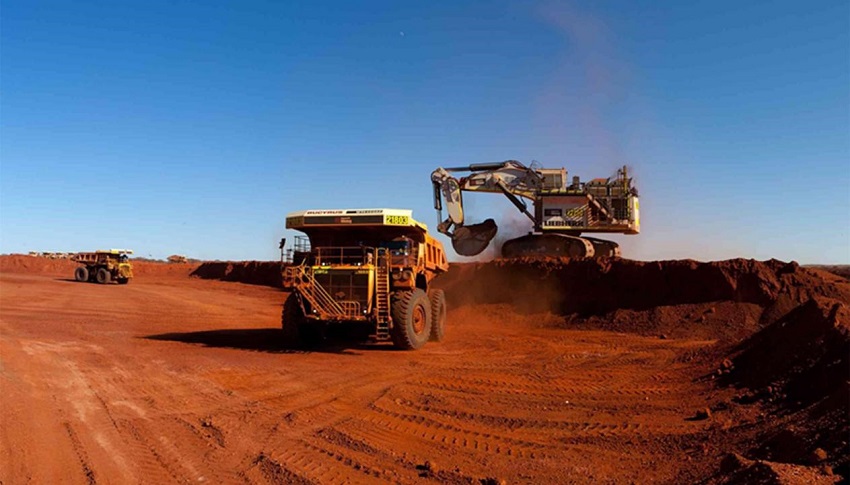

Mining of BIF formations involves coarse crushing and screening, followed by rough crushing and fine grinding to comminute the ore to the point where the crystallised magnetite and quartz are fine enough that the quartz is left behind when the resultant powder is passed under a magnetic separator.

The key economic parameters for magnetite ore being economic are the crystallinity of the magnetite, the grade of the iron within the BIF host rock, and the contaminant elements which exist within the magnetite concentrate. The size and strip ratio of most magnetite resources is irrelevant as BIF formations can be hundreds of metres thick, with hundreds of kilometres of strike, and can easily come to more than 2,500 million tonnes of contained ore.

The typical grade of iron at which a magnetite-bearing banded iron formation becomes economic is roughly 25% Fe, which can generally yield a 33% to 40% recovery of magnetite by weight, to produce a concentrate grading in excess of 64% Fe by weight. The typical magnetite iron ore concentrate has less than 0.1% phosphorus, 3-7% silica and less than 3% aluminium.

The grain size of the magnetite and its degree of comingling with the silica groundmass determine the grind size to which the rock must be comminuted to enable efficient magnetic separation to provide a high purity magnetite concentrate. This determines the energy inputs required to run a milling operation. Generally most magnetite BIF deposits must be ground to between 32 and 45 micrometres in order to provide a low-silica magnetite concentrate. Magnetite concentrate grades are generally in excess of 63% Fe by weight and usually are low phosphorus, low aluminium, low titanium and low silica and demand a premium price.

Currently magnetite iron ore is mined in Minnesota and Michigan in the U.S., and Eastern Canada mine taconite. Magnetite bearing BIF is currently mined extensively in Brazil, which exports significant quantities to Asia, and there is a nascent and large magnetite iron ore industry in Australia.
